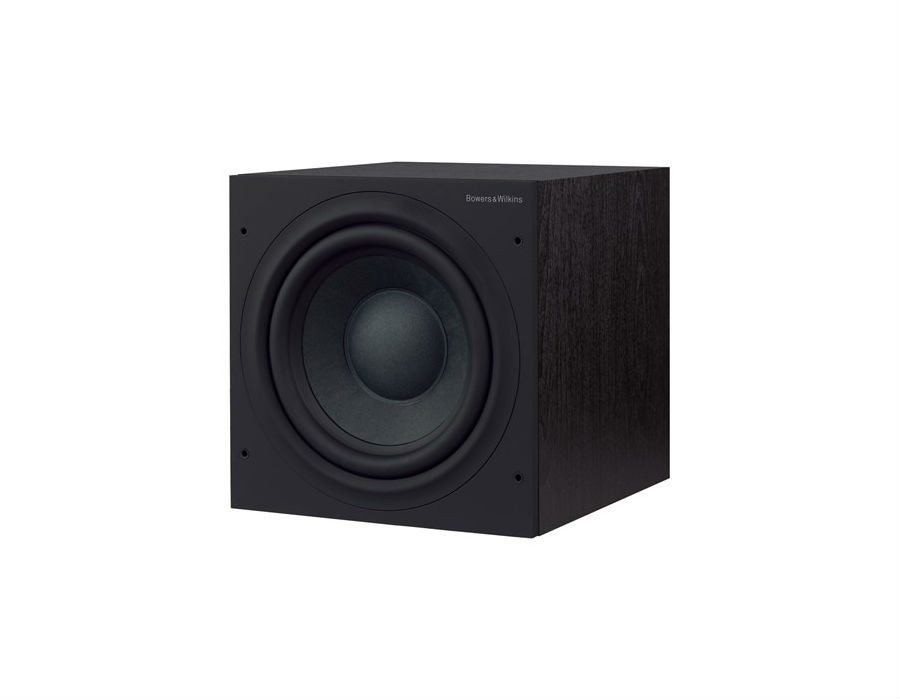

Bowers & Wilkins ASW610XP

Aprašymas





Features:

Input level (line in)

Input level (speaker in)

Low-pass filter frequency (line in only)

Low-pass filter bypass

Bass extension

Bass roll-off alignment

Auto sense on / standby

Phase switch

Description:    Active closed-box subwoofer system

Drive unit:    ø250mm (10 in) paper / Aramid fiber cone long-throw

Frequency range:    -6dB at 18Hz and 25 / 140Hz adjustable (EQ at A)

Frequency response:    ±3dB 25Hz – 40 / 140Hz adjustable (EQ at A)

Bass extension:

-6dB at 18Hz (position A)

-6dB at 23Hz (position B)

-6dB at 28Hz (position C)

Amplifier:    Power output: 500W

Rated power consumption:    98W / 1W standby

Input impedance:    33kΩ

Signal / noise:    >90dB

Inputs:

Line in (RCA Phono)

Speaker in (Binding post)

12v trigger (3.5mm jack)

Low-pass filter

Active 4th-order, variable cut-off frequency

Dimensions:

Height: 325mm (12.8in) not including feet or spikes

337mm (13.3in) including feet

353mm (13.9in) including spikes

Width: 325mm (12.8in)

Depth: 348mm (13.68in) not including grilles

375mm (14.8in) including grilles and controls

Net weight:    18.65kg (41.12 lb)

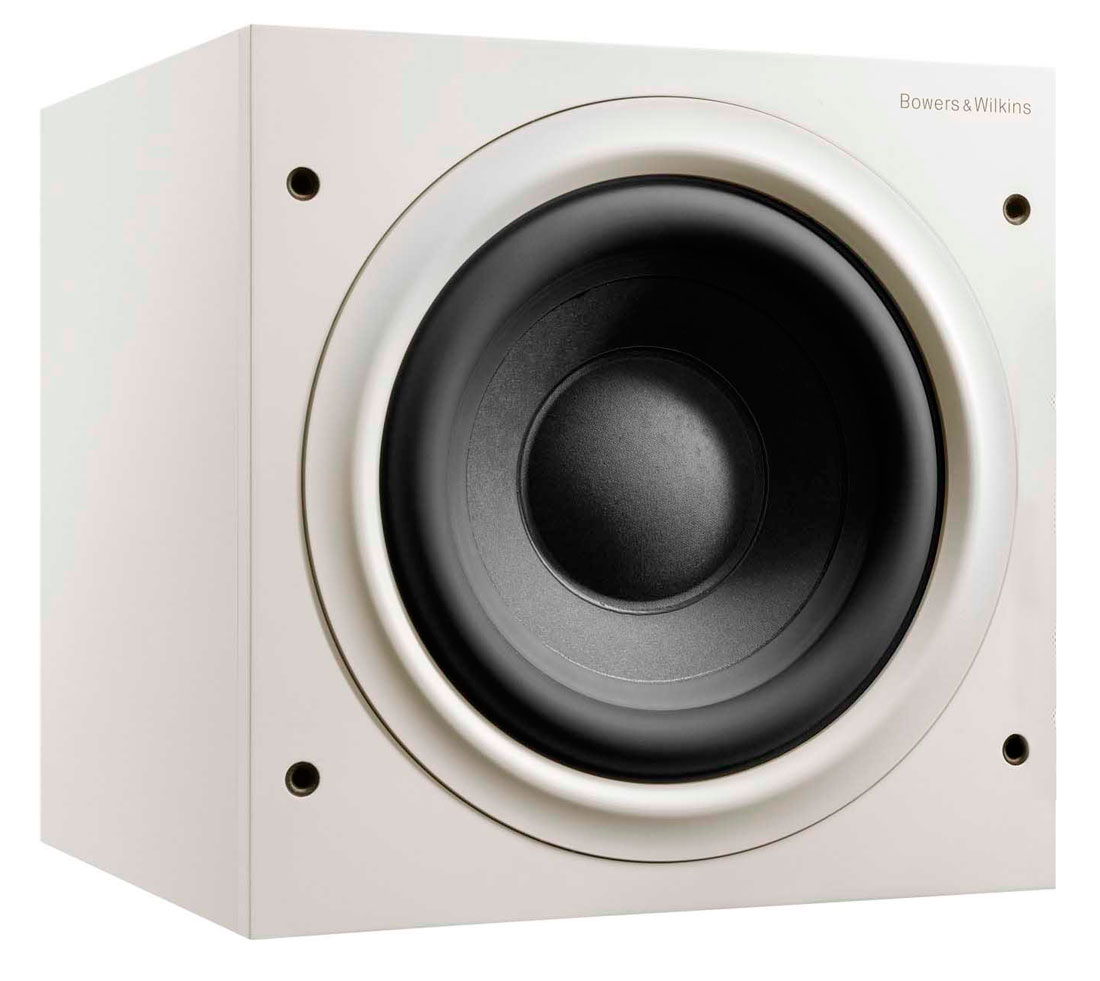

Cabinet finishes:    Black/White
