New Horizon 203

Aprašymas

Elegance and Power. With their essentiality turntables of the 200 line give you unforgettable sensations.

Modern turntable design New Horizon innovates the classic scheme and combines with high quality finishes and reliable construction, attentive to the details.

The synergy of the common elements that make up 201, 202 and 203 means that even the smallest details emerge from the grooves of the vinyl with the grace and sweetness that only large analog systems can provide.

The plate is made of transparent methacrylate 20mm thick and reaches a weight of almost 2kg. This significantly increases inertia and rotational fluidity to the advantage of the dynamics of music reproduction.

Pairing with the new New Horizon NH95 9″ tonearm, fully adjustable, enhances detail and clarity to the listening. A great project that has engaged us in the search for characteristics of absolute excellence to extract the soul from our beloved records.

Attention to detail defines New Horizon turntable greatness: the plinths rest on technical feet, in three pieces, damping and adjustable in height.

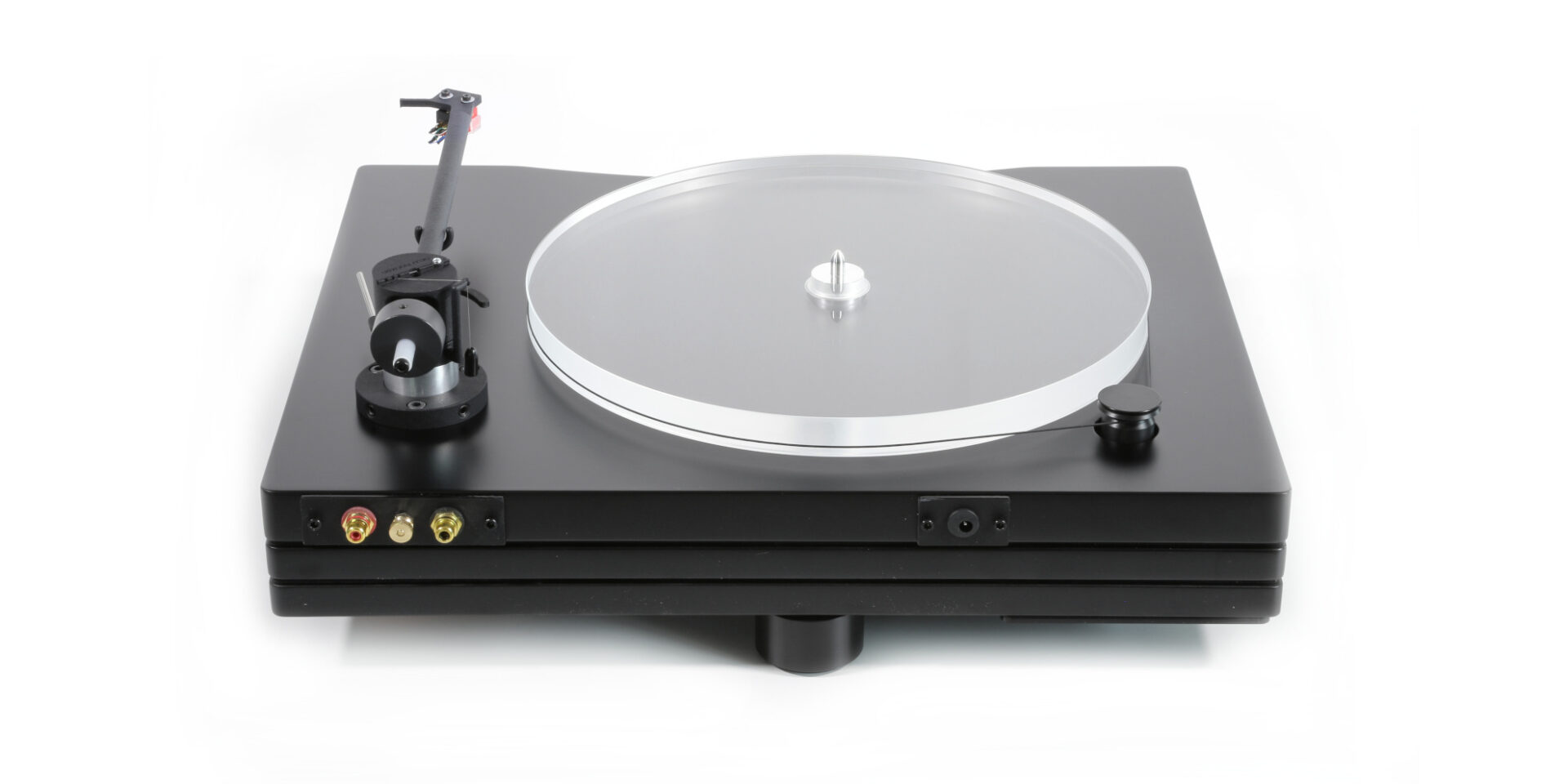

203: 3 plinths for the 3 fundamental components of the turntable: motor, bearing and tonearm each on its own plinth. The harmony of the forms and the finesse of the design are amplified by the generosity of the dimensions. A satisfaction for the eyes, for the mind and for the heart.

• 203 can be identified as a rigid base turntable, but technically it is not. The three plinths are formally united in a single body but physically decoupled one from the other by a layer of insulating, anti-vibration material. Each plinth holds one of the main pieces of the turntable ensuring stability in the fixing as well as utmost resilience to the vibrations. We have opted also in 203 for HDF, wood pulp compressed with artificial resins. This material is extremely regular and heavy: its isomorphic composition works much more efficiently than the solid wood.
• The turntable pulsating heart is the compact 24VAC synchronous motor whose main feature is its extremely regular rotation, independent from the variations of the mains voltage, given that its speed depends on the mains frequency. The high torque and the rotation speed of 500 rpm actively contribute to the regularity and fluidity of the plate rotation.
• 203 is a set of mechanical parts in action. The largest internal source of noise and vibrations is the motor that must be isolated as much as possible from all other parts of the turntable. The engine insulation in New Horizon turntables is made by an exclusive mechanical suspension system. Through precision steel springs, calibrated on the suspended weight of the motor and the pulley, the oscillation transmission to the plinth is efficiently blocked.
• The transmission of the motion to the plate is obtained by a special belt in silicone rubber. The choice of this material ensures the best energy transfer and an excellent decoupling from the vibrations produced by the engine during the operation.
• One of the strong points in New Horizon turntables is the plate rotation pivot. The perfection of the movement is the result of a accurate project and several prototypes. Today the piece in production has a sturdy inverted bearing structure in three pieces of aluminum and steel that guarantee the maximum “silence” and a very low rotation friction.
• The plinth houses the brand new 9″ NH95 straight arm. The movement of this jewel of mechanics is based on four high precision radial bearings. The tube is a sandwich of nylon and aluminum worked to break down the resonances and dampen the section dedicated to the counterweight. In addition to the truly progressive proprietary anti-skating, it offers all the micro-adjustments possible to take full advantage of the characteristics of any cartridge from azimuth to vertical tube alignment (VTA). The choice of accessories is completed by the tools necessary for its adjustment also by a handy sling bar.
• The appearance is extremely important: 203 has a 20mm thick laser-cut and precision machined platter in Crystal Methacrylate. This material with a high specific weight combines the excellent ability to disperse the vibrations kinetic energy, to the elegance of a perfect transparency.
• New Horizon turntables are interfaced in the best way with all your electronics. An excellent insulating material plate accommodates the gold-plated RCA output terminals and the separate earth connector.
• The New Horizon 5030RD feet enhance the sonic characteristics of any hifi device by providing better vibration and resonance isolation. They are made of Delrin®, steel, low density natural rubber and HQR compound (Hard Quiet Rubber), cleaning the system from spurious vibrations, noticeably improving the acoustic scene, detail and three-dimensionality.

Tech Spec 203
